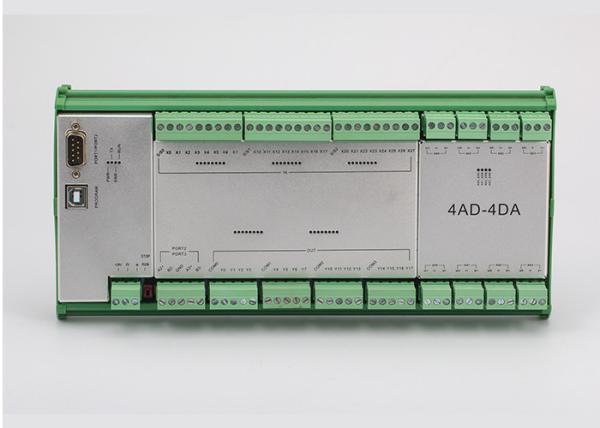

X0-X5 rising and falling edge interruption 4-way high speed surge immunity output PLC input module

Name: X0X5 rising and falling edge interruption 4way high speed surge immunity output PLC input module
Brand: FLEXEM
Price: 1 USD

Best X0-X5 rising and falling edge interruption 4-way high speed surge immunity output PLC input module wholesale

Brand Name : FLEXEM

Model Number : FL2N-40MR-4ADDA-B

Certification : CE

Place of Origin : Shenzhen

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T

Supply Ability : 5000 pcs/week

Delivery Time : 1-7 business days after payment confirmed

Packaging Details : Carton

CPU : ARM 32-bit Cortex-M3 CPU

Digital Input : 24 High-level input*4,general input*20,supporting source/diary type

Digital Output : 16 relay output*16

High-Speed Input : 2-way AB input/4-way separate high-speed counting

High-Speed Output : 4-way high speed surge immunity output(100kHz*2,20kHz *2),only transistor output

Analog Input : 4-way high speed surge immunity output(100kHz*2,20kHz *2),only transistor output 4 pass AD,12-digit isolated ADC,voltage input:0V~+10V (input impedance>500kΩ） Power input:0mA~+20m

Contact Now

* CPU: ARM CortexTM M3 CPU.
* Digital Input: 24 High-level input x4,general input x20,supporting source/drain type.
* Digital Output: 16 NPN transistor power output x16, or PNP transistor power output x16, or transistor power output x8+relay outputx8.

Power Consumption	4W
Power Protection	Isolated Power,protected from thunderstrike and surging
Power Down Allowed	< 5mS
CE & RoHS	EN61000-6-2:2005, EN61000-6-4:2007, RoHS, CE Surge Immunity:±1KV；EFT:±2KV; ESD:4KV, Air:8KV

PORT1/PORT2
Pin1	Rx-(B) (PORT2 RS485)
Pin2	RxD (PORT1 RS232)
Pin3	TxD (PORT1 RS232)
Pin4	NA
Pin5	GND
Pin6	Rx+(A) (PORT2 RS485)
Pin7	NA
Pin8	NA
Pin9	NA
